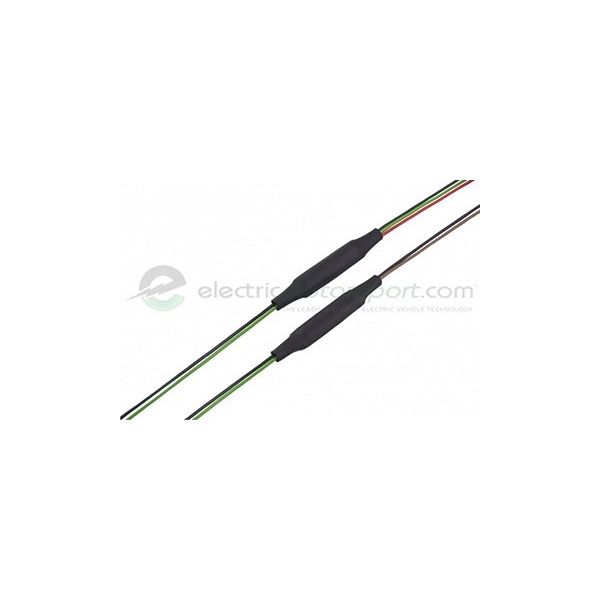

EMUS Optical Isolators
$25.00
Top/Bottom Pair, for use with Cell Modules
SKU
CCA030D
Description
Contains:
EMUS BMS Top Isolator – 1pcs.
EMUS BMS Bottom Isolator – 1pcs.
Ring Terminal M8 – 3 pcs.
Emus BMS Top/Bottom Isolators are cell communication adapters that provide optical isolation in application where the main controller communicates directly to EMUS BMS Cell Modules. The Bottom isolator connects between the main controller and the first cell of series-connected battery pack, while the Top Isolator provides isolating barrier between the last cell of series-connected battery pack and the main controller.
Specifications
Operating temp: -40°C÷+80°C;
Galvanic isolation up to 2kV;
Dimensions: 72x7x8mm±1mm;
Wires length: 200mm; 7.87 in
Support up to 254 cells.
Recommended for use in consumer applications and small, one-segment battery packs.
| Battery BMS Configuration | Configurable |
|---|---|
| Battery BMS Type | BMS Parts |
| Country of Manufacture | Lithuania |
