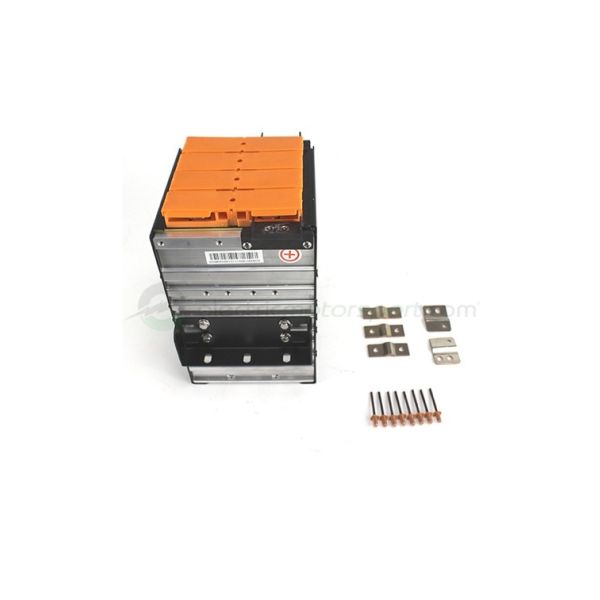

Alithium 12.8V 100Ah 4-Cell High Energy Density Lithium Battery Module

The Alithium 12.8 V 100 Ah module offers a compact, lightweight, and money saving alternative to similar LiFePO4 battery modules. At nearly half the size of competing cell modules, the A13100 module finally makes it possible to pack a higher amount of energy into tight spaces like motorcycles, go karts, scooters, golf cars, and more.

FEATURES

Lithium Iron Phosphate: Safest of all lithium chemistries
High Power Density: 400 W/kg
Long cycle life
Product certifications: UN38.3, UL, IEC, GB, ROHS
Includes painted steel compression housing with mounting foot tabs, orange plastic terminal caps, cell to cell links, and copper rivets (or optional M5 screws and nuts sold separately).

CELL SPECIFICATIONS

Cathode material: Lithium Iron Phosphate
Nominal Capacity: 100 Ah
Nominal Voltage: 3.2 V
Individual Cell Dimensions (T-W-H): 30 x 135 x 220 mm  (1.18 x 5.31 x 8.66 in)
Individual Cell Weight: 1.87 kg  (4.1 lb)
4 Cell Module Dimensions (L-W-H):129.2 x 170 x 256 mm (5 x 6.69 x 10 in)
4 Cell ModuleWeight 9.6 kg (21.3 lb)
Maximum charge current: 50 A (0.5 C)
Maximum continuous current discharge: 100 A
Pulse current (25, 50% SOC 10S): 300 A
Estimated charge and discharge cycles down to 80% capacity: 3000
Working temperature (discharge): -20 ºC - 60 ºC
Working temperature (charge): 0 °C - 55 ° C
Terminal Holes: 5mm
