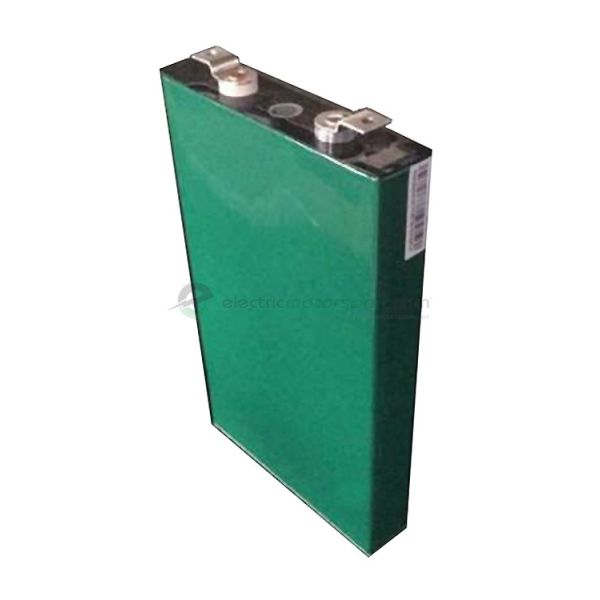

Alithium 3.2V 100Ah LiFePO4 High Energy Density Lithium Battery Cell
$597.00
Nearly half the size of competing cells
SKU
A32100
The Alithium 3.2V 100Ah module offers a compact, lightweight, and money saving alternative to similar LiFePO4 cells. At nearly half the size of competing cells, A32100 cells finally make it possible to pack a higher amount of energy into tight spaces like motorcycles, go karts, scooters, golf cars, and more.
FEATURES
Lithium Iron Phosphate: Safest of all lithium chemistries
Aluminum enclosure w/ plastic skin cover
Safety venting valve
High Power Density: 400 W/kg
Long cycle life
Product certifications: UN38.3, UL, IEC, GB, ROHS
CELL SPECIFICATIONS
Cathode material: Lithium Iron Phosphate
Nominal Capacity: 100 Ah
Nominal Voltage: 3.2 V
Dimensions (T-W-H): 30 x 135 x 220 mm (1.18 x 5.31 x 8.66 in)
Weight: 1.87 kg (4.1 lb) per cell
Maximum charge current: 50A (0.5 C)
Maximum continuous current discharge: 200 A
Pulse current (25, 50% SOC 10S): 300 A
Estimated charge and discharge cycles down to 80% capacity: 3000
Working temperature (discharge): 0 ºC - 45 ºC
Working temperature (charge): 20 °C - 60 ° C
| Battery Voltage | 3.2V |
|---|---|
| Nominal Voltage | 3.2V |
| Nominal Capacity | 100 Ah |
| Battery BMS Configuration | Configurable |
| Chemistry | LiFeMnPO19 |
| Operating Voltage | 2.8 to 3.6V |
| Max Charging Current | 100A |
| Max Discharge Current | 2C Continuous -5C Pulsed |
| Cycle Life | >3000 at 80% DoD |
| Operating Temp | minus 20C to 60C |
| Charging Temp | 0C to 55C |
| Discharge Temp | minus 20C to 60C |
| Self Discharge | <3% Monthly |
| Dimensions LxWxH | 5.31 x 1.18 x 8.66 in |
| Dangerous Goods | UN 3480 - Lithium ion batteries |
| Product Weight | 8 lbs |
| Model | A32100 |
| Product Includes | Housing, terminal caps, cell links and rivets |
| Country of Manufacture | China |
