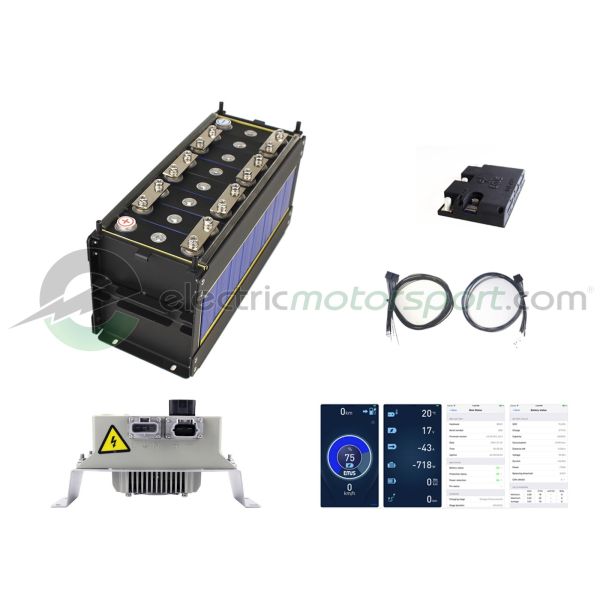

Alithium 50Ah 8-Cell BMS Mini Kit

This Aithium battery package comes complete with A2450 Li-Ion battery modules, EMUS Mini battery management system (BMS), and charger. The EMUS BMS Mini can manage 6 to 16 50 Ah cells.

Please review the following ordering guide prior to purchasing:

1. Batteries

The EMUS BMS Mini can manage a maximum of 16 LiFePO4 50Ah cells.

Alithium battery cells come in 8-cell modules. Each 8-cell module is 25.6  V - 50 Ah. This kit includes two 8-cell modules, to be connected in series to achieve 48 V.

The Alithium 25.6 V 50 Ah module offers a compact, lightweight, and money saving alternative to similar LiFePO4 battery modules. At nearly half the size of competing cell modules, the A2450 module finally makes it possible to pack a higher amount of energy into tight spaces like motorcycles, go karts, scooters, golf cars, and more.

FEATURES

Lithium Iron Phosphate: Safest of all lithium chemistries
High Power Density: 400 W/kg
Long cycle life
Product certifications: UN38.3, UL, IEC, GB, ROHS
Includes painted steel compression housing with mounting foot tabs, orange plastic terminal caps, cell to cell links, and copper rivets (or optional M5 screws and nuts sold separately).

CELL SPECIFICATIONS

Cathode material: Lithium Iron Phosphate
Nominal Capacity: 50 Ah
Nominal Voltage: 3.2 V
Individual Cell Dimensions (T-W-H): 37.5 x 131 x 155 mm  (1.47 x 5.16 x 6.10 in)
Individual Cell Weight: 1.31 kg  (2.88 lb)
8 Cell Module Dimensions (L-W-H): 333.4 x 133.3 x 177.8 mm (13.12 x 5.25 x 7 in)
8 Cell Module Weight: 13.1 kg (28.9 lb)
Maximum charge current: 50 A (0.5 C)
Maximum continuous current discharge: 100 A
Pulse current (25, 50% SOC 10S): 300 A
Estimated charge and discharge cycles down to 80% capacity: 3000
Working temperature (discharge): -20 ºC - 60 ºC
Working temperature (charge): 0 °C - 55 ° C
Terminal Holes: 5mm

3. BMS Mini

EMUS BMS Mini is a standalone Lithium battery management system for batteries consisting of up to 16 Lithium cells.

It has all key BMS functions integrated into one device:

4. Charger

Select from CAN or relay-driven charger options of varying output power. Spare chargers can be purchased individually in the Chargers category on our website.

ElCon CAN Enabled Chargers

ElCon CAN enabled chargers interface directly with the EMUS BMS control unit and will not come with a preprogrammed charging algorithm because all charging parameters will be dictated by the BMS. ElCon series chargers are available in wide range of outputs.

If an ElCon charger is selected, the appropriate model will be chosen based on the number of cells you have chosen above. Therefore, it is important that you do not order extra batteries on this page- instead, they should be ordered as a separate line item.

ELCON UHF 1.8kW HK-H CAN Charger

48V HK-H-H66-25 (18-66V 25A)

Software & Manuals

Please visit the EMUS website's suppport page for the latest software and manuals.

EMUS Support Page: https://emusbms.com/support
