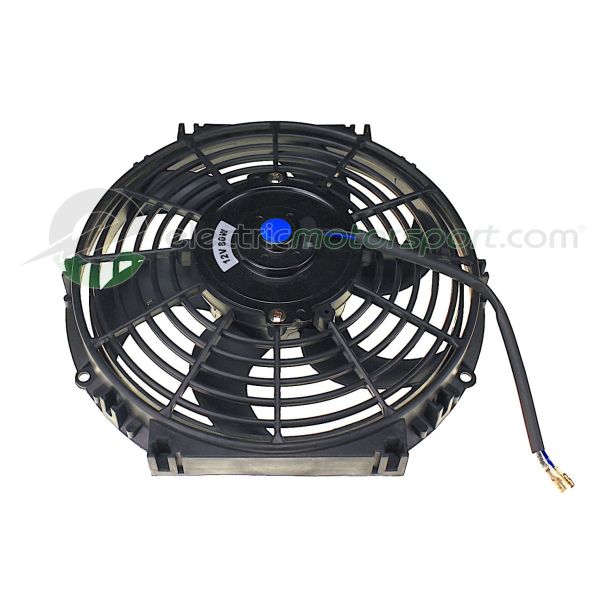

10" Electric Cooling Fan

Description

This fan is recommended for cooling electric motors such as the ME1905 to keep temperatures under control. It is 12 V powered and can be triggered manually or automatically via a fan control unit. Some advanced controllers allow for triggering it via a relay, and set up a threshold from motor temperature monitoring.

Features

High Performance
Slim design provides excellent motor bay clearance
Excellent heat and corrosion resistance ensure long service life
Push/Pull electric radiator cooling fan is reversible
Includes mounting brackets and tie straps kit

Specifications

Design: 6 Blades
Voltage: 12 V
Current draw: ≤6 A
Power: 80 W
Capacity: 800 CFM
Speed 2400 ±10% rpm
Fan diameter: 10"
Overall Diameter: 11.42''
Thickness: 2.536''
