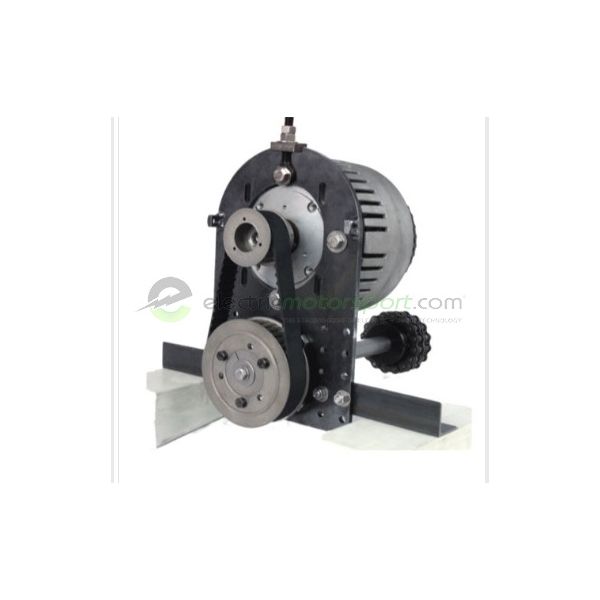

5-10kW Marine Ratio Multiplier For NEMA 145TC Motors - Belt Drive

Marine Transmission, 145TC Input Flange, 2:1 - 2.67:1 Ratio

Description

These are ratio multiplier drives made with stainless steel plates and belt drive pulleys.

Stainless steel hardware is included for completing the assembly. Hardware required for attachment to boat structure is not included.

All components except prop shaft coupler, bearing housing and drive pulley are made from stainless steel.

Includes:

• 9" x 16" 3/8" Stainless steel plate
• Installed components:
  • Thrust bearing
  • Reduction output shaft
  • Drive pulley
• 2 angle bracket support mounts
• 2 brace arms and angle attchments
• Motor pulley and hub
• Prop shaft coupler
• Belt tensioner with hardware
• Motor mounting bolts
• Machine keys (for pulley and coupler)
• One drive belt
• All fasteners
• Shaft keys

Specifications

Available ratios: 2:1 to 2.67:1
Maximum output torque: 150 lb-ft
NEMA Frame Size: 140TC (143/145)
Shipping Weight: 38 lbs.
