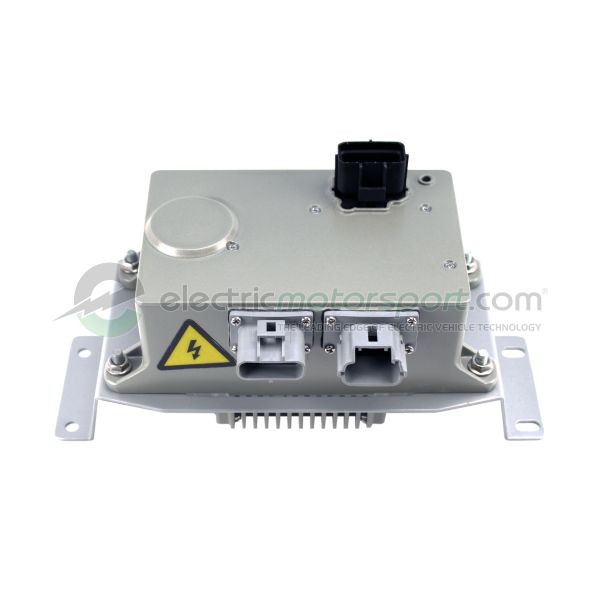

Elcon 1.8kW HK-H CAN UHF Chargers

The HK-H series 1.8KW charger is designed for electric vehicle battery and battery management system interface. The product not only has high efficiency, small volume, high stability, long life, etc., higher degree of protection, high reliability, and other functional features, it is the ideal power source for electric vehicle charging. Charger has built-in thermal sensing device providing thermal overload protection and automatic recovery. Fully sealed encapsulation process, up to IP67 protection class, you can be sure that it will work in any complex environment with high reliability.

Features

Up to 95% efficiency
Strong protection
Extended temperature operating temperature range
100% full load burn-in test High degree of protection up to IP67
Automotive-grade seismic rating
While charging the battery intelligent temperature compensation, maximizing battery life
The input voltage range AC85-AC280, for worldwide voltage range
Cooling Fan
Built-in CAN bus
Light Weight < 2kg and compact


Protection Features

Output overvoltage protection
Output overcurrent protection
Output short circuit protection
Input undervoltage protection
Charger over-temperature protection
Battery over-temperature protection

Can bus address: E5 (Default)
Can bus speed: 250 kbps
