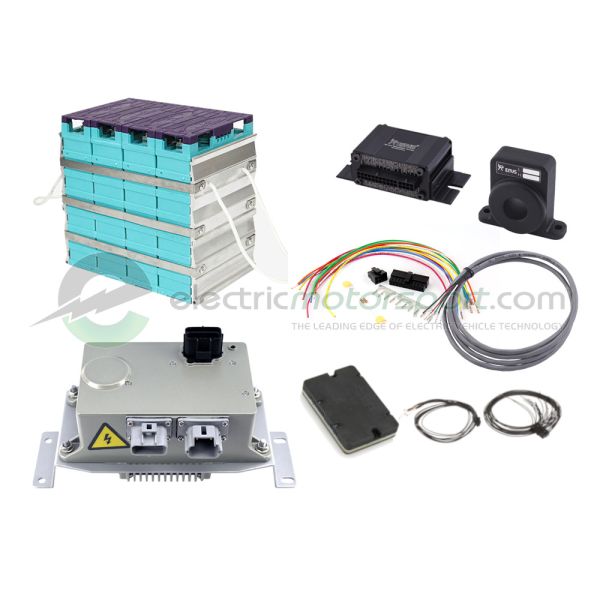

GBS Lithium Centralized Kit w/CCGM

Our GBSCentralized Kit includes:

• Your choice of 100Ah or 200Ah battery modules
• EMUS battery management system (BMS) with Centralized CAN Cell Group Modules (CCGM)
• On-board charger
• Optional monitor

You choose the cell count, BMS components, and accessories.

The BMS control unit requires a 9 VDC – 32 VDC supply voltage from an auxiliary battery or DC-DC converter. Please contact us if you need help configuring your battery pack or visit the preconfigured lithium battery kit section.

The EMUS Centralized Cell Group Module is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors for easy BMS system assembly. The integrated proprietary EMUS software allows data transfer within 100ms frequency. It also has 5 external temperature sensors to monitor ambient temperature.

Each CCGM is capable of managing from 6 up to 16 lithium cells and total of 28 CCGM units can be connected in series, parallel, or mixed topology.

NOTE: All battery shipments incur a $30 Dangerous Goods fee per unit, which is included in the price.
