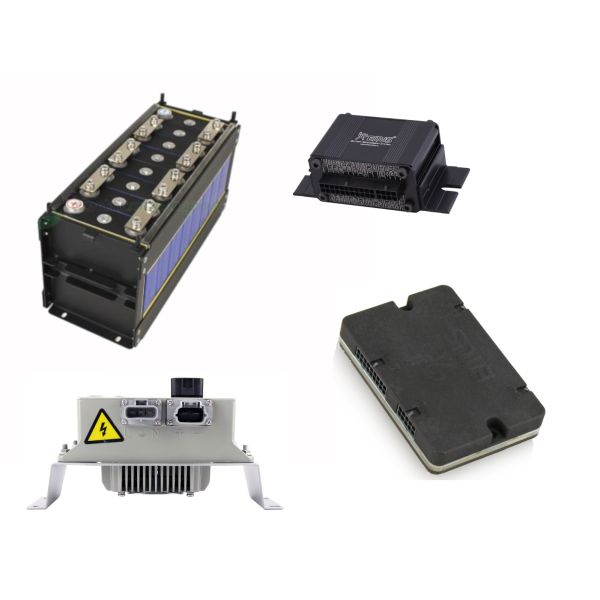

Alithium 50Ah 8-Cell Centralized Kit w/ CCGM

Our Alithium 50Ah 8-CELL Centralized Kit includes:

• Li-Ion 12 V battery modules (8 x 50Ah cells) in anti-expansion cage
• Cell links, fastners, and wiring harness
• EMUS battery management system (BMS) with Centralized CAN Cell Group Modules (CCGM)
• On-board charger
• Optional monitor

You choose the cell count, BMS components, and accessories.

The BMS control unit requires a 9 VDC – 32 VDC supply voltage from an auxiliary battery or DC-DC converter. Please contact us if you need help configuring your battery pack or visit the preconfigured lithium battery kit section.

The EMUS Centralized Cell Group Module is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors for easy BMS system assembly and integrated proprietary EMUS software, which allows data transfer within 100ms frequency. It also has 5 external temperature sensors to monitor ambient temperature.

Each CCGM is capable of managing from 6 up to 16 lithium cells and total of 28 CCGM units can be connected in series, parallel, or mixed topology.

Choose the correct CCGMs for your kit voltage:

• The Low Voltage CCGM023A+Q is for up to 400V.
• The High Voltage CCGM024A+Q is for voltages above 400V.

NOTE: All battery shipments incur a $30 Dangerous Goods fee per unit, which is included in the price.
