FP-6 Foot Pedal Throttles

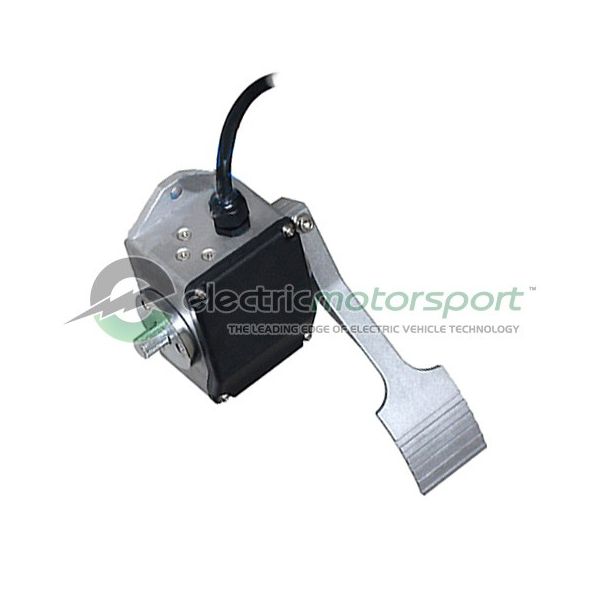

The FP-6 foot pedal style throttle is commonly used in electric vehicles such as cars, golf carts, go-karts, riding mowers and more! Choose from 0-5k or 0-5VH (Hall effect) sensor type.

0-5K ohms type

Resistance: 0 - 5k Ohms
Pedal position range: 0-35°

Wiring

RED: Potentiometer high
Green: Potentiometer wiper
Black: Potentiometer low
Yellow: Foot Switch
Blue: Foot Switch (negative or positive)

0-5VH (Hall effect)

Input: 12 Volts
Hall output Voltage: 0 - 5 Volts
Pedal position range: 0-35°

Wiring:

RED: +12V Supply
Green: Hall output
Black: Negative
Yellow: Foot Switch
Blue: Foot Switch (negative or positive)
