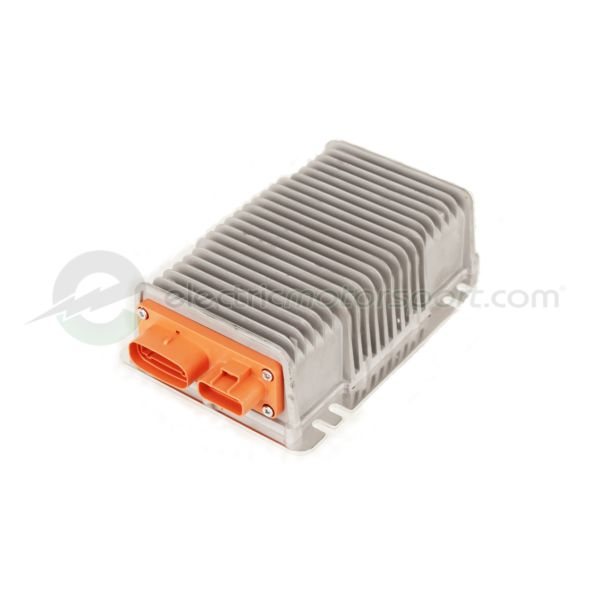

Isolated 600W DC-DC Converters

Specifications

48 V Model-
Input Voltage: 48 V Nominal
Input Voltage Range: 36 V to 60 V

60-72 V Model-
Input Voltage: 72 V Nominal
Input Voltage Range: 45 V to 90 V

96-108 V Model-
Input Voltage: 96 V Nominal
Input Voltage Range: 72 V to 135 V

144 V Model-
Input Voltage: 144 V Nominal
Input Voltage Range: 108 V to 180 V

Specifications

Output Voltage: 13.8 V @ 0 A
                             12.0 V @ 50 A (typical)
Max Output Current: 50 A @12 V (typical)
Rated Output Power: 500W @ 25 °C
Peak Output Power: 600W @ 25 °C 6min
Maximum Efficiency: ≥ 90%
Environmental Enclosure: IP68
Shock and Vibration: SAEJ1378
Safety-North America: UL2202/UL1564 2nd Edition
Emissions- North America: FCC Part 15/ICES 003 Class A
Immunity-Europe: EN61000-4-2/3/5/6/11
Operating Ambient Temperature: -20 °C – +60 °C (-22 °F – +122 °F)
Weight: 3.96 lbs. (1.8 kg)
Dimensions: 8 x 5 x 1.9 inches (204 x 127 x 48 mm)

Protections

Water and Vibration Proofed: All sealed by silica glue to get water and vibration proof, which is suitable for all kinds of conditions.
Input reverse polarity protection: Shut down, auto–reset.
Water Proofed Fuse: Input or output fuse, simple wiring.
No Arc: Input with no arc, can be controlled by key switch directly, without contactor
Short Circuit: Shut down with little plus current, auto–reset, ensure the wire safety.
Superheating Cutback: Reduce output current if the temperature is over 65 °C, ensure the continuous power for your application.
Input Reverse Polarity: Electronic protection, auto–reset.
Input Low Protection: Shut down, auto–reset, prevent the battery from over discharging
