Integrated Motor-Differential Drive System

Are you looking for a cost-effective drive system which will allow your vehicle to climb hills faster? Are you thinking of converting your golf car to a powerful, high-speed, off-road hunting buggy? Look no further, here's your solution!

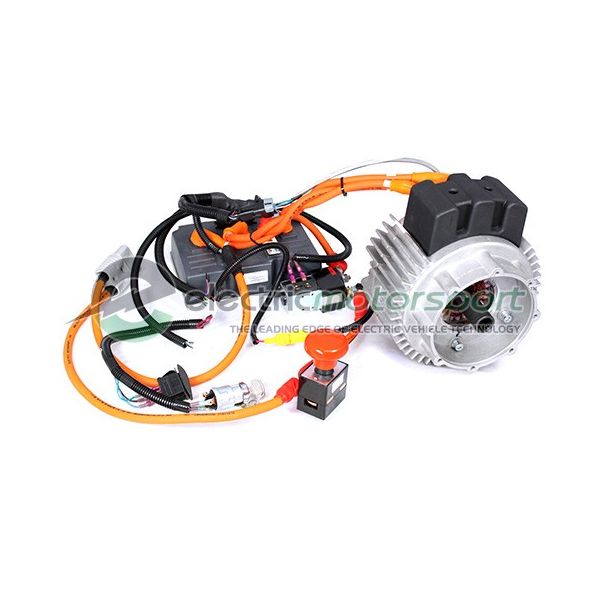

Hot rod your ATV, UTV, Golf Car or NEV (Neighborhood Electric Vehicle) with the latest brushless PMAC pre-wired and tested drive system from Electric Motorsport. This new, lightweight, high efficiency system includes a 9.91:1 or 15.7:1 differential to facilitate conversion of gas engine vehicles or replacing old worn out transaxles. It can also aid in the conversion to taller tires (depending on the original ratio) Solar cars and robotics projects can also benefit from a system featuring integrated differential and the hassle-free compactness of integrated motor and transmission.

Motor - Brushless Design = No maintenance.
Power -  12 kW Continuous, 37 kW Peak at 48 V 15 kW Continuous, 46 kW Peak at 96 V

These patented axial flux motors are designed to work with sinusoidal controllers such as the Sevcon Gen4.

Features -
Quiet Operation
Durable and reliable
High 89% Efficiency
Smooth acceleration
Light weight (only 43 lbs.)
Low torque ripple at low speed
Sine/cosine speed sensor
Air cooled (cast aluminum heat sink)

Motor Specifications -

Mounting Face: Mounts to Dana/Spicer differential
4 pole motor (8 180 ºC neodymium iron boron high quality magnets)
20 turns per phase
Rotor speed: 5500 RPM at 96 V unloaded (6500 RPM Peak)
Voltage: 24 to 120 VDC input to the control
Torque constant of 0.15 Nm per Amp
The inductance phase to phase is 0.05 milli-Henry
Armature Inertia: 45 kg cm²
Current: 180 Amps AC continuous (220 Amps DC into the motor control) -
Peak current: 550 Amps AC for 1 minute (650 Amps DC into the motor control) -
Weight: 43 pounds
Peak Stall Torque: 65 ft lb. -
Cooling: Air cooled (cast aluminum heat sink) -
Includes temperature sensor

Differential -

Differential gearbox with two-stage reduction and parallel axes, expressly designed by COMEX for light vehicle applications, such as micro-cars and small working vehicles powered with an electric motor. The use of external carters in aluminum alloy and gears in alloyed steel with surface hardening ensures lower weight and the highest durability. Moreover the teeth of the gears are super-finished (power Honing), the only product on the market with this kind of mechanical operation, to optimize efficiency and reduce noise during operation under load.

Differential Specifications:

Gearbox typology: two-stage with parallel axes
Two available ratios: 9.91:1 and 15,7:1
Max output torque: 1000 Nm
Max electric engine RPM: 7000 RPM
Single speed Efficiency: 96%
Installation tilt (X): from 0° to 180°
Built-in sensor for electronic odometer
Suggested oil type: Gear box oil SAE 80W90
Suggested oil quantity: 0.8 liters
Dry weight: 11.3 Kg
Gears super-finishing (Power Honing)

Controller -

 The Gen4-series represents the absolute latest design concept for compact and reliable AC Controllers. They feature the smallest footprint in the industry for their power capability. The high efficiency of these controller makes it possible to integrate them into very tight spaces without sacrificing performance. The design has been optimized for the lowest possible cost while maintaining superior reliability in the most demanding applications. The Gen4 controllers are designed to control either AC Asynchronous motors or PMAC Synchronous motors. This feature allows users to select optimal motor solutions for any application. Both UVW and encoder AB inputs are provided for maximum flexibility.

Features -

Sealed IP66 enclosure Integrated logic circuit (I/O) Advanced flux vector control Autocheck - system diagnostics Sensorless control (depending on application) CANopen product

Controllers -

Sevcon Gen4 Size 2, MPN 634A42229
System programmed at 48V, 275A

Sevcon Gen4 Size 4, MPN 634A44206
System programmed at 48V, 450A

Sevcon Gen4 Size 4, MPN 634A83207
System programmed at:
72V, 350A
84V, 350A
96V, 350A

Sevcon Gen4 Size 6, MPN 634A46210
System programmed at:
48V, 650A

Sevcon Gen4 Size 6, MPN 634A85210
System programmed at 72V, 550A
84V, 350A
96V, 550
