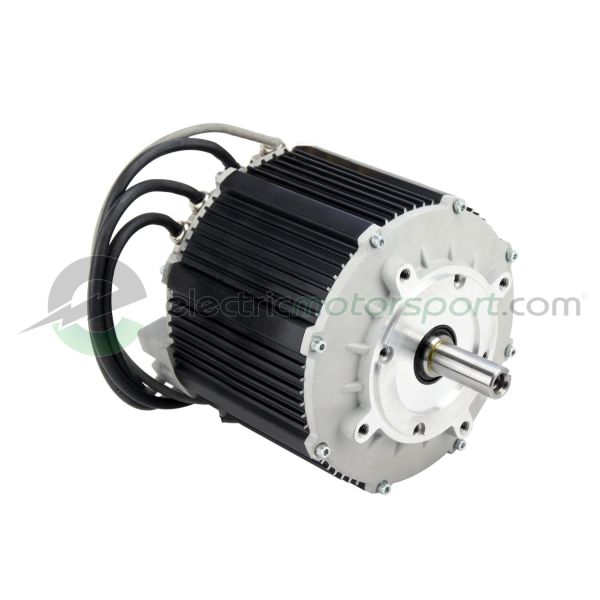

ME2011 PMAC Motor
$1,025.00
ME2011 8.4kW IP65 Sine-CoSine PMAC Motor
SKU
ME2011
The ME2011 brushless PMSM air cooled motor features:
Surface Mounted Magnets on Rotor Inductance: (1000Hz): 15 μH；
Winding Resistance: 1.95 mΩ
Sensor Type: Sine-Cosine
Number of poles: 10, or 5 pole pairs
Ingress Protection: IP65 rated
Maximum Current: 600 amps for 2 minutes
Continuous Current: 200 amps
Designed for 12 kw, S1 duty,5500 rpm, 20 Nm torque, with a 72-96 VDC battery supply to the control.
Temperature Sensor in Windings is KTY84-130 equivalent sensor
| Country of Manufacture | China |
|---|---|
| Model | ME2011 |
| Type | PMAC |
| Rated Power | 8.4kW, S1 duty (at 48VDC battery supply to controller) |
| Maximum Power | 48kW |
| Rated Torque | 20Nm |
| Stall Torque | 60Nm |
| Rated Voltage | 48V |
| Max Voltage | 96V |
| Phase Current | 200A |
| Continous Current | 200A |
| Rated Speed | 6000RPM |
| Maximum Speed | 6000RPM |
| Efficiency | 92% |
| Poles Pairs | 5 |
| Temp Sensor | KTY84-130 sensor |
| Rotor Position Sensor | Sine-Cosine |
| Cooling | Air - Convection |
| Maximum Temperature | 150 Deg C |
| IP Rating | IP65 |
| Mounting System | NEMA143T |
| Flange Bolt Threads | 0.375 |
| Shaft Type | Straight keyed |
| Shaft Diameter | 0.875 in |
| Shaft Length | 1.5 in |
| Case Length | 7.95 in |
| Width | 7.25 in |
| Height | 7.25 in |
