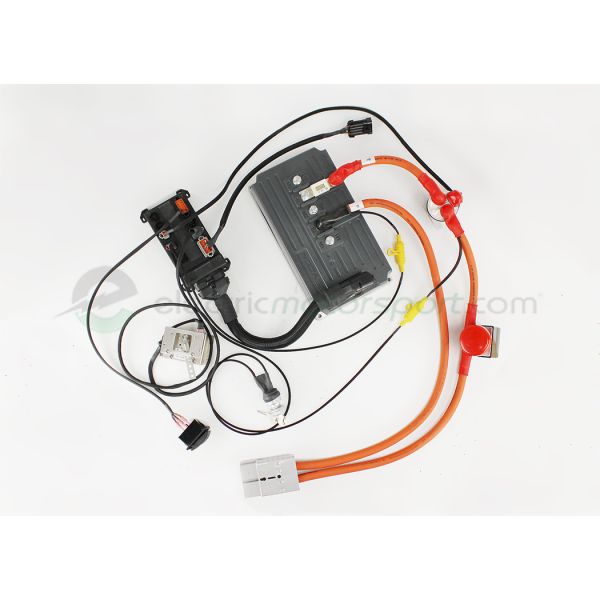

Native Universal Signal Harness
As low as $435.00
For systems with Sevcon Gen4 Controllers
SKU
NSHA3
Our Native Universal Signal Harness will save you time and money, helping you to intergrate your Sevcon controller into your drive system with a tested, true pinout via our proprietary Breakout Box. All the cables you need are included, and optional accessories that integrate with the system can be added. Most cables can be customized in length to fit your project. You will need to know your Sevcon Gen4 size (see table below) as that will dictate the choices of some parts.
Harness includes:
Native Breakout Box
Native 35-pin Breakout Box to Controller Cable
Motor Sensor Cable
Contactor Cable
Key Switch Power Cable
Accelerator Cable
Directional Switch and Cable
Power Supply with Emergency Disconnect Switch
Motor Supply
Optional Accessories:
CAN Display and Cable
Drivability Switch and Cable
40A / 12V Relay and Cable
LED Pilot Lamp and Cable
Sevcon Sizes/Native Sizes:
Gen4 Size |
Volts |
Amps |
ED Switch |
Contactor |
Ring Terminals * |
Anderson Connector |
Power Supply Size |
Motor Supply Size |
| S2 | 36-48V | 275A | 250A | 100A | 1/4" | 120A | Small | Small 6AWG |
| S2 | 72-80V | 275A | 250A | 100A | 1/4" | 120A | Small | Small 6AWG |
| S4 | 36-48V | 450A | 400A | 500A | 5/16" | 175A | Medium | Medium 4AWG |
| S4 | 72-80V | 350A | 400A | 500A | 5/16" | 175A | Medium | Medium 4AWG |
| S4 | 110V | 300A | 400A | 500A | 5/16" | 175A | Medium | Medium 4AWG |
| S6 | 36-48V | 650A | 400A | 500A | 5/16" | 350A | Large | Large 2AWG |
| S6 | 72-80V | 550A | 400A | 500A | 5/16" | 350A | Large | Large 2AWG |
*Ring Terminals are on the Contactor and Keyswitch Cables
