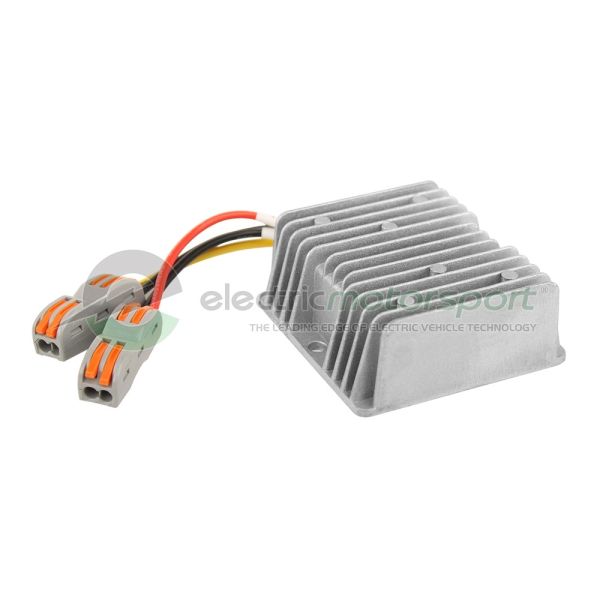

Sealed 240W DC-DC Converter
$40.00
Great for motorcycles! Very compact and lightweight DC-DC converter.
Non-isolated inputs and outputs. DC 72V (30V~84V) to 12V 20A
SKU
DCDC-72V240W
Wiring
Red: + Input from Battery, Positive
Black: - Input From Battery, Negative
Black: - Output to Load, Negative
Yellow: + Output to Load, Positive
Specifications
Input voltage DC 72V ( 30V ~84V)
Output voltage DC12V±0.3V
Output current 20A
Output power 240W
No-load current 10mA ~ 15mA
Efficiency 95%
Module type Non-Isolated
Module Waterproof rating IP67
Working temperature -35℃-75℃
Cable length 10CM
Machine size 74mm × 74mm × 32mm N.W. 250g
| Dimensions LxWxH | 4 x 3.25 x 1.5 in |
|---|---|
| Product Weight | 1 lb |
| Country of Manufacture | China |
