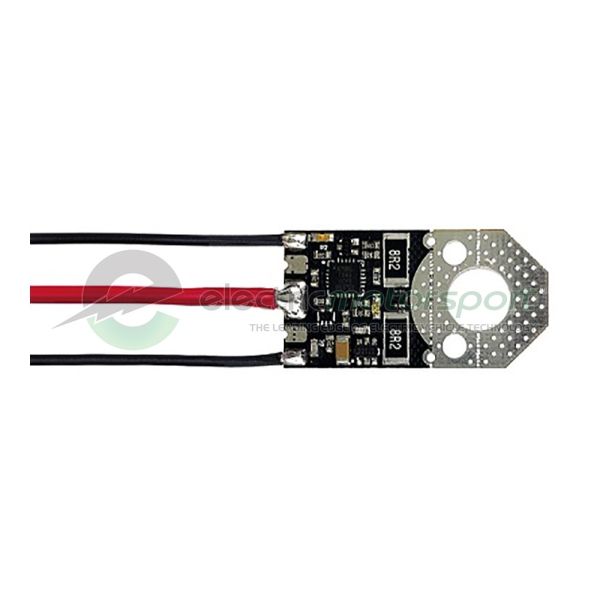

Emus BMS Cell Modules are the single cell controllers that measure cell voltage and provide means of controlled dissipative balancing. Each Cell Module can also measure its own temperature, and is equipped with a special serial interface for communication with the main controller.
The Small model is optimized for lower capacity cells and can be used in application with space constraints or on non-prismatic cells.
Thermistor NOT included (NTC 100kΩ)
Specifications:
Shunt characteristics:
– RTOT= 4.1Ohm;
– PMAX= 2W; Max balancing current: 0.7A (limited by PMAX); Operating voltage: 2.0V – 4.55V; Operating temperature: -40°C to +80°C;
Voltage measurement accuracy: ±10mV;
External temperature sensor option; Temperature measurement accuracy: ±5°C; Dimensions: 33.8x12x2.8 mm; Wire length: 100mm; Mounting hole: M8.
