EMUS G1 BMS (Distributed) Grouped Configuration

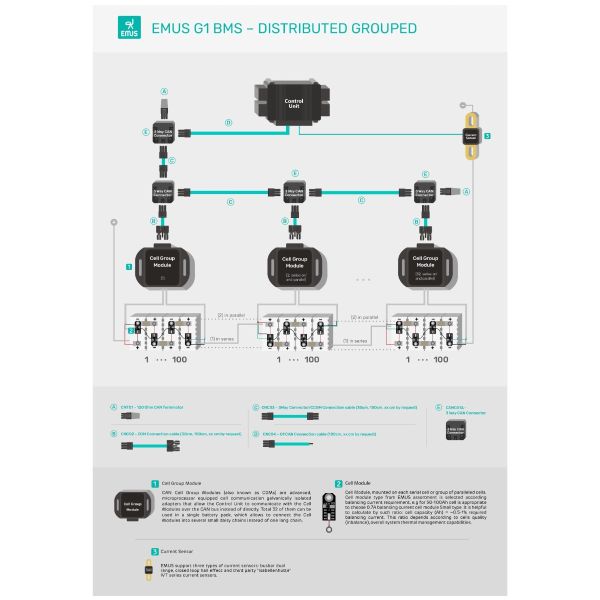

In many applications, the whole battery needs to be split into separate blocks or groups of cells that might be placed in different locations of the vehicle or other device. Packs may need to be connected in series and/or parallel configurations to achieve needed battery characteristics. In such cases the EMUS BMS can be configured to use CAN Cell Group Modules (CGM) instead of Top/Bottom Isolators, and communication to each group is performed separately via a robust CAN bus link. Each CGM includes a 100CM connection cable, but if you need additional length beween packs we offer a Connector Kit and CAN cable by the foot.

The Control Unit supports up to 32 CAN Cell Group Modules. Each CAN Cell Group Module can process up to 255 Cell Modules, allowing the whole EMUS BMS to handle up to 8,160 cells. A Display Unit may be connected to the Control Unit in this or any other configuration scenario to indicate the key battery parameters to the operator or driver of the vehicle.
