EMUS G1 Centralized Kit

EMUS G1 CCGM (Centralized CAN Cell Group Module) Configuration

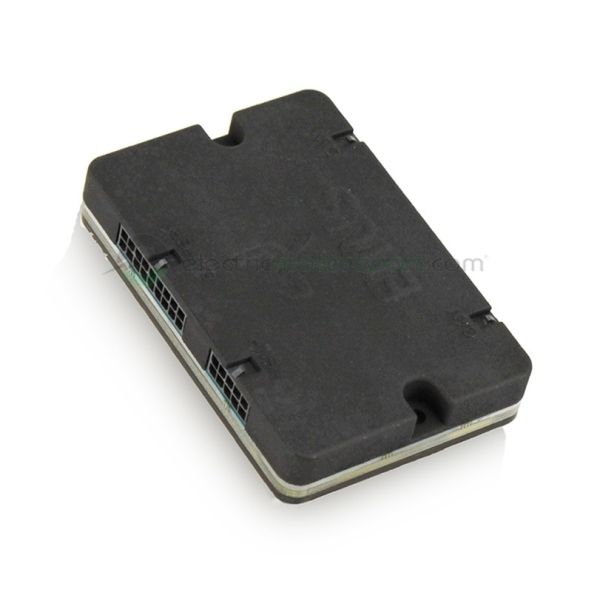

The EMUS Centralized Cell Group Module or “Slave Unit” has been updated, and is now available in Low Voltage (LV) for systems up to 400V, and High Voltage (HV) for systems above 400V to 800V.  The new version [CCGM022] is equipped with two CAN connectors for easy BMS system assembly.

Updated software allows data transfer down to a 100ms update period. Each CCGM is capable of managing from a minimum of 6, up to 16 lithium cells and a total of 32 CCGM units can be connected in series, parallel or mixed topology. So, one Control Unit client is capable of monitoring up to 512 cells per battery pack.

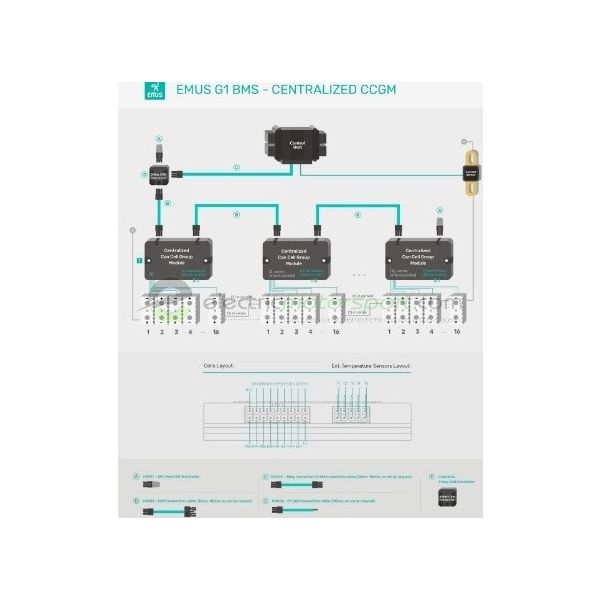

EMUS Centralized Cell Group Modules can be easily daisy-chained with already prepared CAN connection cables; available in 30cm or 100cm lengths. If additional length is needed, we offer a CAN Connector Kit, and CAN cable by the foot.  CAN splitters, terminators and optional displays are all plug and play, which makes the EMUS BMS likely the easiest to assemble BMS system in the world!
