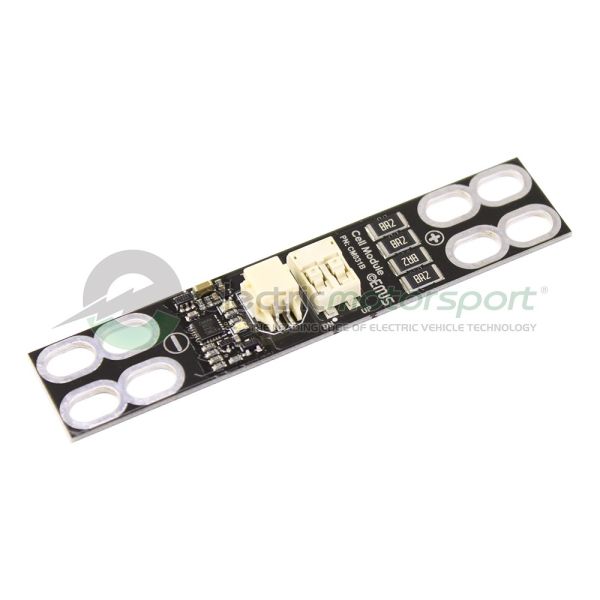

EMUS GBS Cell Module CM031B

Emus BMS Cell Modules are the single cell controllers that measure cell voltage and provide means of controlled dissipative balancing. Each Cell Module can also measure its own temperature (with added temperature sensor probe, sold separately), and is equipped with a special serial interface for communication with the main controller.

The GBS model is designed specifically for GBS 100Ah cells.

Specifications:

Shunt characteristics:
– RTOT= 2.05Ohm;
– PMAX= 4W;
Max balancing current: 1.4A (limited by PMAX);
Operating voltage: 2.0V÷4.55V;
Operating temperature: -40°C ÷ +80°C;
Voltage measurement accuracy: ± 10mV;
Temperature measurement accuracy: ± 5°C;
Dimensions: 33.8x12x2.8 mm;
Wire length: 100mm;
Mounting hole: M5.2.
