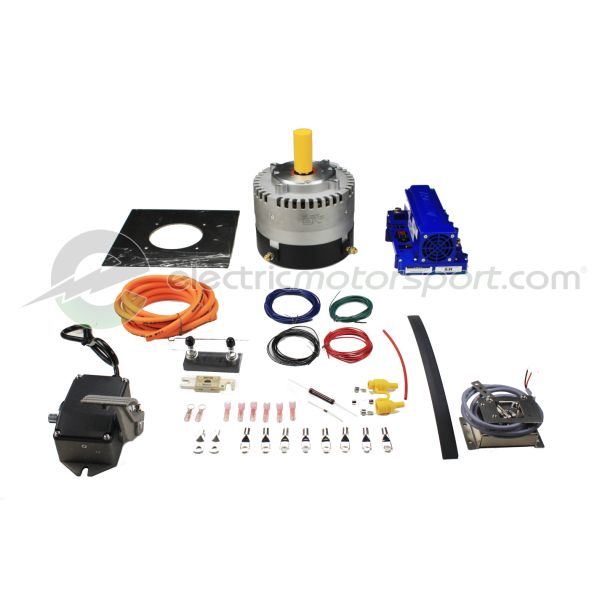

ME1906 (ME0909) DIY Drive Kit

Motor -

The Motenergy ME1906 (ME0909) is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 4.8 KW continuous and 15 KW for 30 seconds. For voltages from 12 to 48 VDC input and 100 amps continuous (300 amps for 30 seconds). Designed for battery operated equipment. It makes a great replacement for the original Etek motor because it has the same bolt pattern and is actually lighter in weight.

Power: 4 cont -12.8 pk hp
Voltage: 12-48 Volt rated
Speed: 2150-4850 rpm
Size: 6" OD, (w/o shaft)
Shaft: 7/8"x 1-3/4", 3/16" key
Weight: 24 lbs.
Voltage Constant: 0.0107
Revolutions per volt: 93.45 RPM
Torque Constant: 0.102 Nm/Amp
Generated Current: 9.8A per Nm

Controller -

Choose from:
SR48300, SR48400,  SR48500,  SR48600

Throttle -

Choose from:
Curtis style PB-6 or PB-8 Pot Box Throttle, FP-6 style Foot Pedal, Domino Twist Grip throttle, Magura Twist Grip Throttle, 0-5 kΩ Potentiometer Dial with Scale, Single Lever Marine Throttle (right or left hand), Dual Lever Marine Throttle

Contactor -

Contactors (also known as solenoids) are used to connect and disconnect main battery buss power. When it is time to turn your vehicle on or off, the contactor will engage or disengage the power at the flip of a switch. This is very usefull in an emergency situation when main power needs to be turned off quickly and easily. When using an Alltrax controller, the contactor coil Voltage must match the nominal Voltage of your battery pack. The amps should be the same as the controller amps. It is highly recommended that an appropriate pre-charge resistor (included) and a coil spike suppression diode (included) be used with the contactor (supplied in our optional controller wire kit).

Switches -

Choose from:
On/Off Ignition keyswitch with 2 keys, On/Off Toggle Switch - for Run Switch or Personality Mode Switch, Inertia Crash Sensor Switch, Emergency Disconnect Switch

Wire Kit -  Wiring kit specifically designed for this drive kit.

Fuse Block - Matching fuse and holder

Other Options - Motor mounting plate, Reversing Contactor and Reversing Contactor Wire Kit
