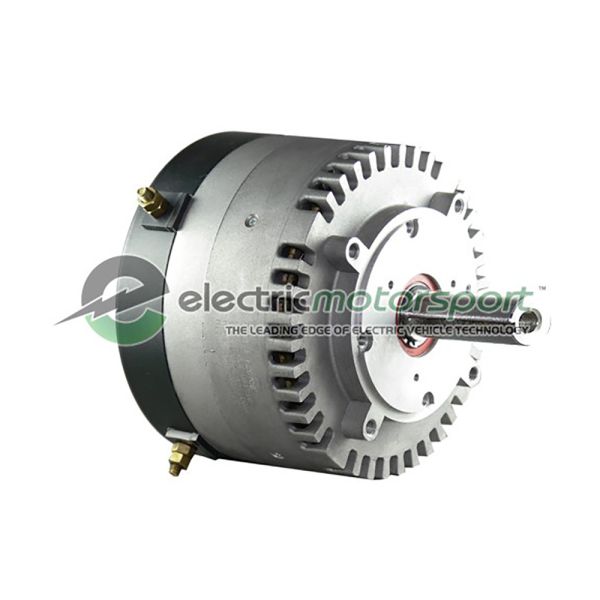

ME1910 4.8kW PMDC Motor
$725.00
Motenergy ME1910 4.8kW PMDC Motor: With Gear on Drive Shaft
NOTE: Special-order, may take as long as 4 months
SKU
ME1910
The Motenergy ME1910 is a brush-type Permanent Magnet DC (PMDC) motor that offers a compelling combination of power, efficiency, and affordability. This robust motor is a popular choice for electric vehicle (EV) enthusiasts and builders seeking a reliable, cost-effective solution for their projects. This motor is identical to the ME1004 except that is has a gear installed on the drive shaft. This is a special-order part with a long lead time. Please visit the ME1004 product listing for specs and details.
| Country of Manufacture | China |
|---|---|
| Model | ME1910 |
| Type | PMDC |
| Rated Power | 8.2 kW |
| Maximum Power | 14.5kW |
| Rated Torque | 24 Nm |
| Stall Torque | 69 Nm |
| Rated Voltage | 24-48 V |
| Max Voltage | 48V |
| Phase Current | 200A |
| Continous Current | 200A |
| Maximum Current | 400A |
| Rated Speed | 3360 RPM |
| Maximum Speed | 3700 RPM |
| Efficiency | 0.88 |
| Temp Sensor | KTY84-130 sensor |
| Rotor Position Sensor | NA |
| Cooling | Air - Fan |
| Maximum Temperature | 150 Deg C |
| IP Rating | NA - Open Frame |
| Mounting System | NEMA |
| Flange Bolt Threads | 0.375 |
| Shaft Type | Installed Gear |
| Shaft Diameter | 1 in |
| Shaft Length | 2.5 in |
| Case Length | 6.4 in |
| Width | 8.0 in |
| Height | 8 in |
| Product Weight | 32 lbs |
