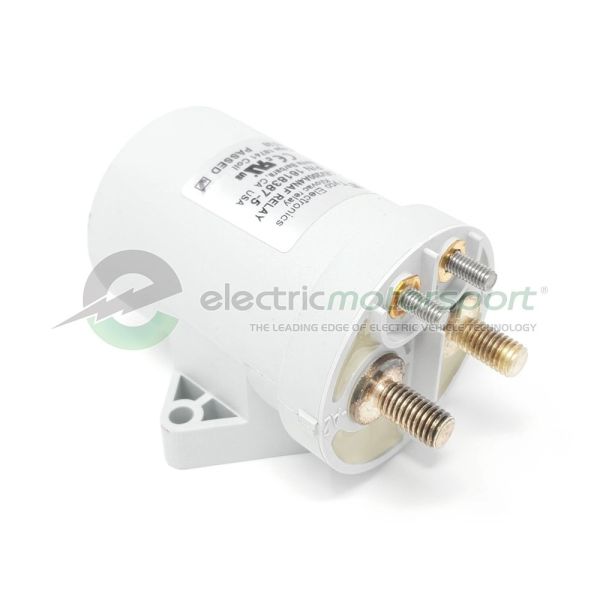

TE Tyco Kilovac LEV200 500A Sealed Contactor - Choose Voltage
As low as
$145.00
High quality, high current sealed contactor capable of 500 Amps continuous. Includes stainless steel terminal hardware.
Only %1 left
SKU
LEV200
Choose from 12V, 24V, 48V, or 72V
Features
Designed to be the lowest cost sealed contactor in the industry with its current rating (500+A carry, 2000A interrupt).
Side mounting - not position senstive.
Hermetically sealed - intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts, including long periods of non-operation.
Typical applications include battery switching and backup, DC voltage power control, circuit protection and safety.
Versatile coil/power connections.
Designed and built in accordance to AIAG QS9000.
| Coil Type | Non Latching |
|---|---|
| Contact Form | SPST-NO (1 Form X) |
| Contact Rating (Current) | 500 A |
| Switching Voltage | 900 VDC - Max |
| Features | Sealed - Hermetically |
| Mounting Type | Bottom Mount |
| Termination Style | Stud |
| Coil Resistance | 145 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Country of Manufacture | Mexico |
|---|
