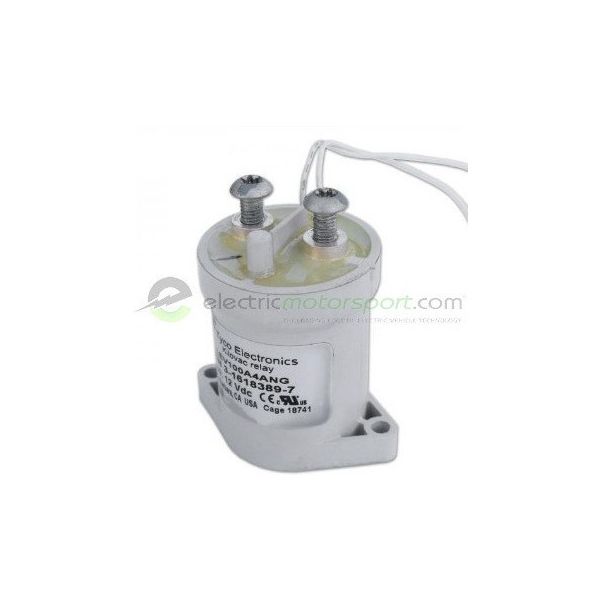

Tyco Style 100A Sealed Contactor - Choose Voltage

Choose from 12V, 24V or 48V

Features

Hermetically sealed — intrinsically safe
Operates in explosive/harsh environments without oxidation or contamination of contacts, including long periods of non-operation.
8kV isolation between open contacts permits use for high voltage isolation and carry
Designed and built in accordance to AIAG QS9000
Not position sensitive, can be mounted in any orientation
Solid copper contacts n UL Recognized for the U.S. and Canada (File E208033) All contact ratings & coil versions may not be UL Recognized n RoHS versions available

Specifications

Terminal Configuration : 2 x M4 Bolt
Contactor Type : Sealed
Product Category : Electromechanical Relays
Product Type : Contactor
Product Classification : Relays - Contactors
Auxiliary Switch Contact Arrangement : None
Coil Voltage (Max) (VDC): 12, 24 or 48V
Coil Resistance (Ω): 26
Coil Voltage Rating (VDC): 12, 24 or 48V
Contact Switching Voltage (Max) (VDC): 900
Actuating System : DC
Contact Arrangement : 1 Form X, SPST-NO DM
Contact Current Rating (A): 100
Pole Configuration : 1
Coil Termination : Wire
Mounting Type : 12V Base Mount, 24 and 48V, Side Mount
Wire Size (AWG): 22
Wire Size (mm²): .34 Coil
Wire Length : 381 mm [ 15 in ]
