Domino Throttle
$120.00

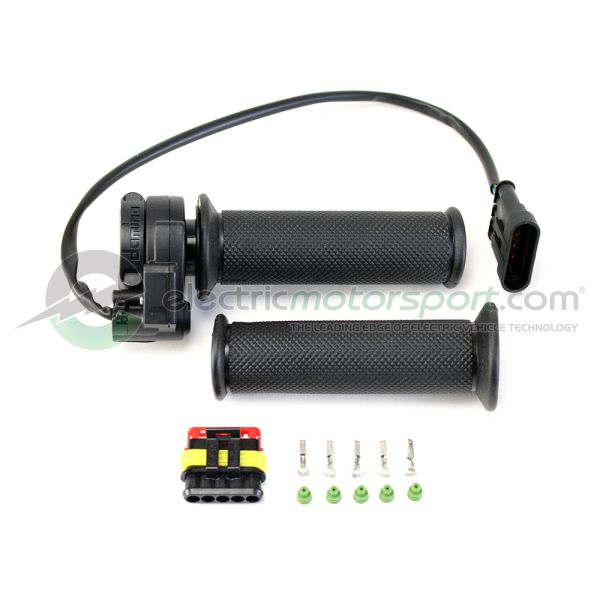

Domino 0-5 kΩ twist-grip throttle with matching grips
SKU
THR-DOMINO
This compact and light-weight twist-grip throttle by Domino S.p.A. features a 5 kΩ IP-54 rated potentiometer, built-in microswitch, and Tyco sealed connectors. The microswitch is a nice added safety feature and can also be used to switch on regenerative braking while decelerating. Designed for electric motor-powered motorcycles, scooters, and tiller-style outboard motors. Made in Italy.
Includes
Domino 5 kΩ twist-grip throttle
Pair of 128 mm Domino black rubber grips
Mating Tyco Superseal 5-position sealed connector and tinned copper contacts
Potentiometer Characteristics
5k Ohm ± 10%
Nominal Voltage: 12 VDC
Max Operating Voltage: 40 VDC
Power Rating: 0,25 W
Operating Temperature: -20°/+85°
Protection Degree: IP 54
500,000 Cycles
Linearity: ± 2%
Microswitch Characteristics
Nominal Voltage: 2 A / 24 V
Lifetime with resistive load of 2 W at 24 V: 500,000 Cycles
Operating Temperature: -20°/+85°
Complete Accelerator Control Characteristics
Operating Temperature: -20°/+60°
Protection Degree: IP 30
Operation: 300,000 Cycles
| Throttle Type | Twist Grip |
|---|---|
| Throttle Sensor Type | 0-5K Ohm Potentiometer |
| Country of Manufacture | Italy |
